Động cơ servo Yaskawa Sigma5
Động cơ servo Yaskawa SGMMV
3.3W, 5.5W, 10W, 11W, 20W, 30W
The SGMMV ultra-small capacity brushless servomotor can be used in a variety of applications. This ultra-compact unit comes in a wide selection of models including two flange sizes, AC or DC power* and holding brakes*
Động cơ servo Yaskawa SGMMV Features
- Low inertia
- High resolution absolute serial encoder: 17-bit
- Maximum Speed: 6000 rpm
- Wide Selection: 3W to 30W
- Holding Brake option available
- AC or DC Input Power
Bảng mã Động cơ servo Yaskawa SGMMV
Models with DC Power Supply Input
| 200 V Model | Điện áp | Công suất | Moment | Peak Torque1 | Dòng điện | Instantaneous Max. Current1 | Rated Angular Acceleration1 |
| SGMMV-B3E | 24/48 VDC | 3.3 W | 0.0105 Nm | 0.0263 Nm | 1.5 Arms | 3.6 Arms | 238000 rad/s2 |
| SGMMV-B5E | 24/48 VDC | 5.5 W | 0.0175 Nm | 0.0438 Nm | 1.5 Arms | 3.7 Arms | 220000 rad/s2 |
| SGMMV-B9E | 24/48 VDC | 11 W | 0.0350 Nm | 0.0875 Nm | 1.7 Arms | 4.1 Arms | 158000 rad/s2 |
| SGMMV-A1E | 24/48 VDC | 10 W | 0.0318 Nm | 0.0955 Nm | 2.1 Arms | 6.1 Arms | 117000 rad/s2 |
| SGMMV-A2E | 24/48 VDC | 20 W | 0.0637 Nm | 0.191 Nm | 2.0 Arms | 5.8 Arms | 137000 rad/s2 |
| SGMMV-A3E | 24/48 VDC | 30 W | 0.0955 Nm | 0.286 Nm | 2.9 Arms | 8.6 Arms | 143000 rad/s2 |
Động cơ servo Yaskawa SGMJV
The SGMJV small capacity brushless servomotor can be used in a variety of applications.
Động cơ servo Yaskawa SGMJV Features
- Medium inertia Quán tính trung bình
- Instantaneous peak torque (350% of rated torque)
- Mounted high resolution serial encoder: 13, 20 bit
- Maximum speed: 6,000 rpm- Tốc độ tối đa
- Wide selection: 50W to 750W capacity, holding brake and gear options
Động cơ servo Yaskawa SGMJV
| 200 V Model | Rated Output1 | Rated Torque1, 2 | Instantaneous Peak Torque1 | Rated Current1 | Instantaneous Max. Current1 | Rated Angular Acceleration1 |
| SGMJV-A5A | 50 W | 0.159 Nm | 0.557 Nm | 0.61 Arms | 2.1 Arms | 38400 rad/s2 |
| SGMJV-01A | 100 W | 0.318 Nm | 1.11 Nm | 0.84 Arms | 2.9 Arms | 47800 rad/s2 |
| SGMJV-C2A | 150 W | 0.477 Nm | 1.67 Nm | 1.6 Arms | 5.7 Arms | 54100 rad/s2 |
| SGMJV-02A | 200 W | 0.637 Nm | 2.23 Nm | 1.6 Arms | 5.8 Arms | 24600 rad/s2 |
| SGMJV-04A | 400 W | 1.27 Nm | 4.46 Nm | 2.7 Arms | 9.3 Arms | 28800 rad/s2 |
| SGMJV-06A | 600 W | 1.91 Nm | 6.69 Nm | 4.2 Arms | 14.9 Arms | 28600 rad/s2 |
| SGMJV-08A | 750 W | 2.39 Nm | 8.36 Nm | 4.7 Arms | 16.9 Arms | 15200 rad/s2 |
Động cơ servo Yaskawa SGMAV
Động cơ servo Yaskawa SGMAV Features
Highlights:
- Super high power rate (Extremely low inertia)
- Instantaneous peak torque (300% of rated torque)
- Mounted high resolution serial encoder: 20 bits
- Maximum speed: 6,000 min-1
- Wide selection: 50W to 1.0kW capacity, holding brake and gear options
Động cơ servo Yaskawa SGMAV bảng mã model
| 200 V Model | Rated Output1 | Rated Torque1, 2 | Instantaneous Peak Torque1 | Rated Current1 | Instantaneous Max. Current1 | Rated Angular Acceleration1 |
| SGMAV-A5A | 50 W | 0.159 | 0.477 | 0.66 | 2.1 | 65800 |
| SGMAV-01A | 100 W | 0.318 | 0.955 | 0.91 | 2.8 | 83800 |
| SGMAV-C2A | 150 W | 0.477 | 1.43 | 1.3 | 4.2 | 89900 |
| SGMAV-02A | 200 W | 0.637 | 1.91 | 1.5 | 5.3 | 54900 |
| SGMAV-04A | 400 W | 1.27 | 3.82 | 2.6 | 8.5 | 67000 |
| SGMAV-06A | 550 W | 1.75 | 5.25 | 3.8 | 12.2 | 53700 |
| SGMAV-08A | 750 W | 2.39 | 7.16 | 5.3 | 16.6 | 31000 |
| SGMAV-10A | 1000 W | 3.18 | 9.55 | 7.4 | 23.9 | 26500 |
Động cơ servo Yaskawa SGMGV
Động cơ servo Yaskawa SGMGV medium capacity brushless servomotor can be used in a variety of applications.
Động cơ servo Yaskawa SGMGV Features
- Highlights:
- Medium inertia
- Mounted high resolution serial encoder: 20-bit
- Maximum Speed: 3000 rpm
- Wide Selection: 30W to 15kW
- Holding Brake and Shaft Seal options available
- Protective Structure: IP67
Động cơ servo Yaskawa SGMGV Models & Ratings
| 200 V Model | Rated Output*1 | Rated Torque*1 | Instantaneous Peak Torque*1 | Rated Current*1 | Instantaneous Max. Current*1 | Rated Angular Acceleration*1 |
| SGMGV-03A | 0.3 kW | 1.96 | 5.88 | 2.8 | 8 | 7900 (7180) |
| SGMGV-05A | 0.45 kW | 2.86 | 8.92 | 3.8 | 11 | 8590 (7990) |
| SGMGV-09A | 0.85 kW | 5.39 | 13.8 | 6.9 | 17 | 3880 (3370) |
| SGMGV-13A | 1.3 kW | 8.34 | 23.3 | 10.7 | 28 | 4190 (3790) |
| SGMGV-20A | 1.8 kW | 11.5 | 28.7 | 16.7 | 42 | 4420 (4090) |
| SGMGV-30A | 2.9 kW | 18.6 | 45.1 | 23.8 | 56 | 4040 (3410) |

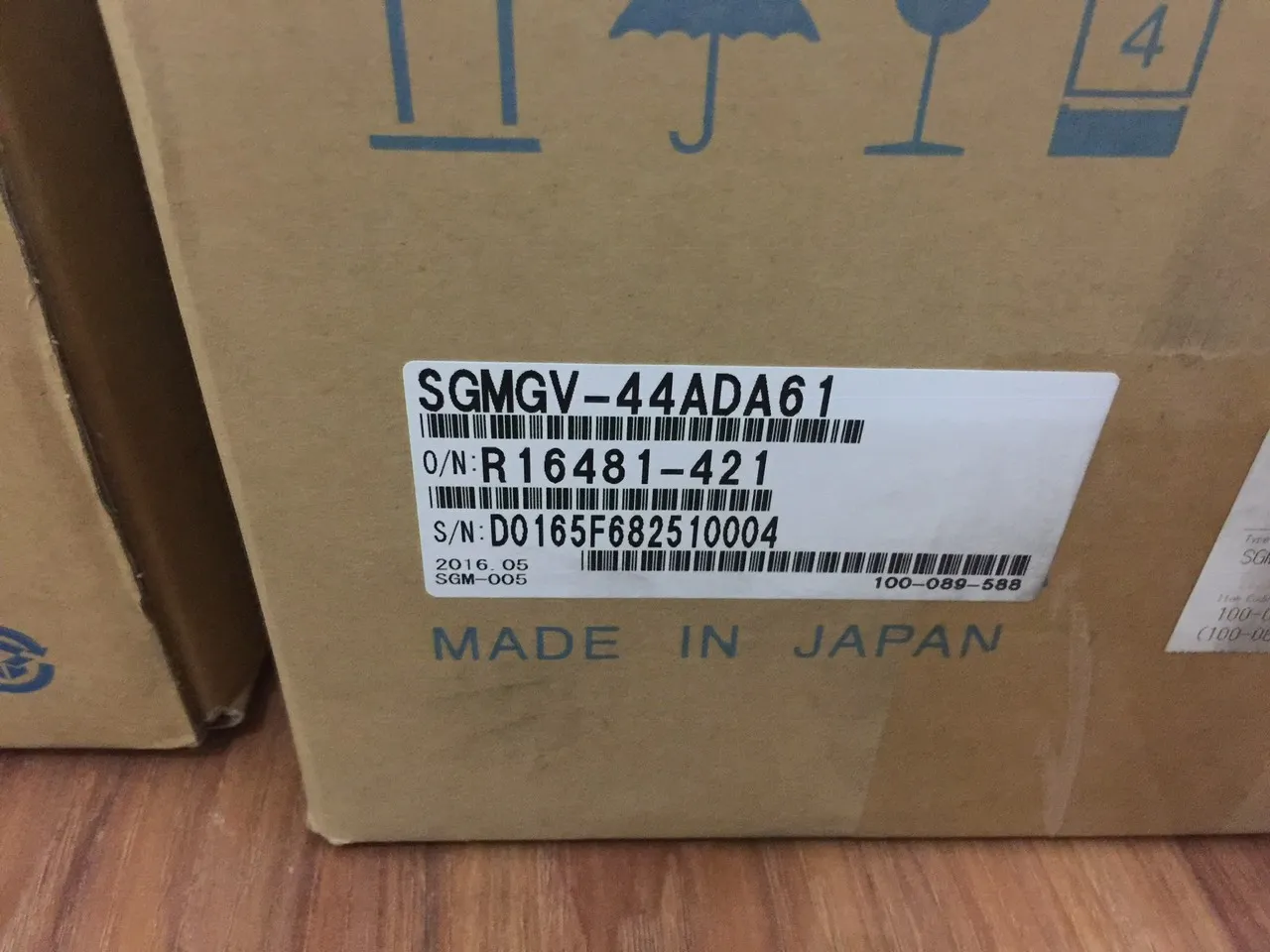

| SGMGV-44A | 4.4 kW | 28.4 | 71.1 | 32.8 | 84 | 4210 (3740) |
| SGMGV-55A | 5.5 kW | 35.0 | 87.6 | 42.1 | 110 | 3930 (3590) |
| SGMGV-75A | 7.5 kW | 48.0 | 119 | 54.7 | 130 | 3840 (3580) |
| SGMGV-1AA | 11 kW | 70.0 | 175 | 58.6 | 140 | 2890 (2680) |
| SGMGV-1EA | 15 kW | 95.4 | 224 | 78 | 170 | 3150 (2960) |
*1. These items and torque-motor speed characteristics quoted in combination with an SGDV SERVOPACK are at an armature winding temperature of 20°C.
*2. Some restrictions apply when using an SGDV-200A SERVOPACK in combination with an SGMGV-30A servomotor.
Notes:
- The values in parentheses are for servomotors with holding brakes.
- The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
SGMGV-03D/-05D: 250mm x 250mm x 6mm (aluminum)
SGMGV-09D/-13D/-20D:: 400mm x 400mm x 20mm (iron)
SGMGV-30D/-44D/-55D/-75D: 550mm x 550mm x 30mm (iron)
SGMGV-1AD/-1ED: 650mm x 35mm (iron)
| 400 V Model | Rated Output*1 | Rated Torque*1 | Instantaneous Peak Torque*1 | Rated Current*1 | Instantaneous Max. Current*1 | Rated Angular Acceleration*1 |
| SGMGV-03D | 0.3 kW | 1.96 | 5.88 | 1.4 | 4 | 7900 (7180) |
| SGMGV-05D | 0.45 kW | 2.86 | 8.92 | 1.9 | 5.5 | 8590 (7990) |
| SGMGV-09D | 0.85 kW | 5.39 | 13.8 | 3.5 | 8.5 | 3880 (3370) |
| SGMGV-13D | 1.3 kW | 8.34 | 23.3 | 5.4 | 14 | 4190 (3790) |
| SGMGV-20D | 1.8 kW | 11.5 | 28.7 | 8.4 | 20 | 4420 (4090) |
| SGMGV-30D | 2.9 kW | 18.6 | 45.1 | 11.9 | 28 | 4040 (3410) |
| SGMGV-44D | 4.4 kW | 28.4 | 71.1 | 16.5 | 40.5 | 4210 (3740) |
| SGMGV-55D | 5.5 kW | 35.0 | 87.6 | 20.8 | 52 | 3930 (3590) |
| SGMGV-75D | 7.5 kW | 48.0 | 119 | 25.7 | 65 | 3840 (3580) |
| SGMGV-1AD | 11 kW | 70.0 | 175 | 28.1 | 70 | 2890 (2680) |
| SGMGV-1ED | 15 kW | 95.4 | 224 | 37.2 | 85 | 3150 (2960) |
*. These items and torque-motor speed characteristics quoted in combination with an SGDV SERVOPACK are at an armature winding temperature of 20°C.
Notes:
The values in parentheses are for servomotors with holding brakes.
The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
SGMGV-03D/-05D: 250mm x 250mm x 6mm (aluminum)
SGMGV-09D/-13D/-20D: 400mm x 400mm x 20mm (iron)
SGMGV-30D/-44D/-55D/-75D: 550 mm x 550mm x 30mm (iron)
SGMGV-1AD/-1ED: 650mm x 650mm x 35mm (iron)
Động cơ servo Yaskawa SGMSV
Dải công suất loại quán tính thấp 1 – 7kW, low inertia
The SGMSV medium capacity brushless servomotor can be used in a variety of applications.
Tính năng Động cơ servo Yaskawa SGMSV
- Low inertia
- Mounted high resolution serial encoder: 20-bit
- Maximum Speed: 5000 rpm
- Wide Selection: 1 – 7kW
- Holding Brake and Shaft Seal options available
- Protective Structure: IP67
Động cơ servo Yaskawa SGMSV loại 200 V Models & Ratings
200 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMSV-10A 1.0 kW 3.18 Nm 9.54 Nm 5.7 Arms 17 Arms 18300 (16000) rad/s2
SGMSV-15A 1.5 kW 4.90 Nm 14.7 Nm 9.3 Arms 28 Arms 24500 (21800) rad/s2
SGMSV-20A 2.0 kW 6.36 Nm 19.1 Nm 12.1 Arms 42 Arms 25700 (23400) rad/s2
SGMSV-25A 2.5 kW 7.96 Nm 23.9 Nm 13.8 Arms 44.5 Arms 25000 (23100) rad/s2
SGMSV-30A 3.0 kW 9.80 Nm 29.4 Nm 17.9 Arms 56 Arms 14000 (10700) rad/s2
SGMSV-40A 4.0 kW 12.6 Nm 37.8 Nm 25.4 Arms 77 Arms 13100 (10700) rad/s2
SGMSV-50A 5.0 kW 15.8 Nm 47.6 Nm 27.6 Arms 84 Arms 12800 (10900) rad/s2
SGMSV-70A 7.0 kW 22.3 Nm 54 Nm 38.3 Arms 105 Arms 18100 rad/s2
*These items and torque-motor speed characteristics quoted in combination with a SERVOPACK are at an armature winding temperature of 20°C.
Notes:
- The values in parentheses are for servomotors with holding brakes.
- The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
- SGMSV-10A/-15A/-20A/-25A: 300mm x 300mm x 12mm (aluminum)
- SGMSV-30A/-40A/-50A/-70A: 400mm x 400mm x 20mm (aluminum)
Động cơ servo Yaskawa SGMSV loại 400V
400 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMSV-10D 1.0 kW 3.18 Nm 9.54 Nm 2.8 Arms 8.5 Arms 18300 (16000) rad/s2
SGMSV-15D 1.5 kW 4.90 Nm 14.7 Nm 4.7 Arms 14 Arms 24500 (21800) rad/s2
SGMSV-20D 2.0 kW 6.36 Nm 19.1 Nm 6.1 Arms 20 Arms 25700 (23400) rad/s2
SGMSV-25D 2.5 kW 7.96 Nm 23.9 Nm 7.4 Arms 25 Arms 25000 (23100) rad/s2
SGMSV-30D 3.0 kW 9.80 Nm 29.4 Nm 8.9 Arms 28 Arms 14000 (10700) rad/s2
SGMSV-40D 4.0 kW 12.6 Nm 37.8 Nm 12.5 Arms 38 Arms 13100 (10700) rad/s2
SGMSV-50D 5.0 kW 15.8 Nm 47.6 Nm 13.8 Arms 42 Arms 12800 (10900) rad/s2
*These items and torque-motor speed characteristics quoted in combination with an SERVOPACK are at an armature winding temperature of 20°C.
Notes:
- The values in parentheses are for servomotors with holding brakes.
- The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
- SGMSV-10D/-15D/-20D/-25D: 300mm x 300mm x 12mm (aluminum)
- SGMSV-30D/-40D/-50D/-70A: 400mm x 400mm x 20mm (aluminum)
Động cơ servo Yaskawa SGMVV
22kW, 30kW, 37kW, 45kW, 55kW
The SGMVV large capacity brushless servomotor can be used in a variety of applications. Offered totally-enclosed, separately cooled, IP44 (except for shaft opening).
Động cơ servo Yaskawa SGMVV
- Medium inertia
- High resolution absolute serial encoder: 20-bit
- Maximum Speed: 2000 rpm
- Wide Selection: 22kW to 55kW
- Holding Brake and Shaft Seal options available
- Flange or Foot Mount Option
Động cơ servo Yaskawa SGMVV
Động cơ servo Yaskawa SGMVV 200 V Models & Ratings
| 200 V Model | Rated Output* | Rated Torque* | Instantaneous Peak Torque* | Rated Current* | Instantaneous Max. Current* | Rated Angular Acceleration* |
| SGMVV-2BA□B | 22 kW | 140 Nm | 350 Nm | 88 Arms | 240 Arms | 3830 (3100) rad/s2 |
| SGMVV-3ZA□B | 30 kW | 191 Nm | 478 Nm | 120 Arms | 340 Arms | 3840 (3280) rad/s2 |
| SGMVV-3GA□B | 37 kW | 236 Nm | 589 Nm | 152 Arms | 460 Arms | 3960 (3550) rad/s2 |
| SGMVV-2BA□D | 22 kW | 262 Nm | 526 Nm | 104 Arms | 240 Arms | 3720 (3380) rad/s2 |
| SGMVV-3ZA□D | 30 kW | 358 Nm | 752 Nm | 150 Arms | 340 Arms | 2780 (2470) rad/s2 |
| SGMVV-3GA□D | 37 kW | 442 Nm | 930 Nm | 195 Arms | 460 Arms | 2830 (2570) rad/s2 |
*. These items and torque-motor speed characteristics quoted in combination with a SERVOPACK are at an armature winding temperature of 20°C.
Notes:
- The values in parentheses are for servomotors with holding brakes.
- The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
- SGMVV-2BA□B/-3ZA□B/-3GA□B/-2BA□D: 650mm x 650mm x 35mm (iron)
- SGMVV-3ZA□D/-3GA□D: 740mm x 520mm x 27mm (iron)
Động cơ servo Yaskawa SGMVV 400V
| 400 V Model | Rated Output* | Rated Torque* | Instantaneous Peak Torque* | Rated Current* | Instantaneous Max. Current* | Rated Angular Acceleration* |
| SGMVV-2BD□B | 22 kW | 140 Nm | 350 Nm | 44 Arms | 120 Arms | 3830 (3100) rad/s2 |
| SGMVV-3ZD□B | 30 kW | 191 Nm | 478 Nm | 60 Arms | 170 Arms | 3840 (3280) rad/s2 |
| SGMVV-3GD□B | 37 kW | 236 Nm | 589 Nm | 76 Arms | 230 Arms | 3970 (3550) rad/s2 |
| SGMVV-4ED□B | 45 kW | 286 Nm | 715 Nm | 102 Arms | 280 Arms | 2670 (2330) rad/s2 |
| SGMVV-5ED□B | 55 kW | 350 Nm | 875 Nm | 117 Arms | 340 Arms | 2710 (2420) rad/s2 |
| SGMVV-2BD□D | 22 kW | 262 Nm | 526 Nm | 52 Arms | 120 Arms | 3720 (3380) rad/s2 |
| SGMVV-3ZD□D | 30 kW | 358 Nm | 752 Nm | 75 Arms | 170 Arms | 2780 (2470) rad/s2 |
| SGMVV-3GD□D | 37 kW | 442 Nm | 930 Nm | 98 Arms | 230 Arms | 2830 (2570) rad/s2 |
| SGMVV-4ED□D | 45 kW | 537 Nm | 1182 Nm | 110 Arms | 280 Arms | 2980 rad/s2 |
*. These items and torque-motor speed characteristics quoted in combination with an SERVOPACK are at an armature winding temperature of 20°C.
Notes:
- The values in parentheses are for servomotors with holding brakes.
- The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
- SGMVV-2BD□B/-3ZD□B/-3GD□B/-2BD□D: 250mm x 250mm x 35mm (iron)
- SGMVV-4ED□B/-5ED□B/-3ZD□D/-3GD□D/-4ED□D: 750mm x 520mm x 27mm (iron)
