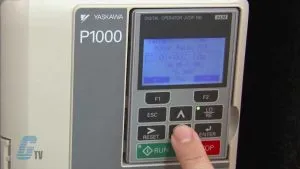

P1000 Drive 3/4 – 1000 HP
The P1000 drive provides simple, reliable, cost-effective control for variable-torque loads through 1000 HP. Specific application features, energy savings, and network connectivity make the P1000 a great choice for industrial fans and pumps.
P1000 Drive Features
LCD Operator with Real Time Clock
- 5-line, 16-character alpha-numeric display with time and date stamping for events, along with timer controls for starting, stopping, and speed changes without the need for external controls.
Application Macros
- Choose from pre-configured fan and pump setup macros to match the application for quick and easy set up.
Selectable and Custom Engineering Units
- Allows for easy configuration of keypad display to match process and feedback devices such as PSI, GPM, Feet.
Underload Detection
- Monitors load and will shut system down in the event of a fan belt or pump shaft breakdown.
Parameter Storage and Removable Terminal Board
- Allows for easy replacement of control card without removing control wires, and stores all drive settings without the need for a copy device.
PI Process Control
- Maintains a set point for closed loop control of fans and pumps for pressure, flow, or temperature regulation, and eliminates the need for a closed loop output signal from a process controller. Independent PI to control an external device in the system.
Power Quality
- Built-in DC reactors (30 HP and larger) provide input harmonics benefit, and protection from input disturbances. Integrated 12 Pulse version (480V, 40 HP and larger) provides a cost-effective solution for low harmonics.
Dynamic Noise Control
- Monitors the load at all times and reduces the output voltage automatically, reducing motor audible noise.
Networking Options
- Industrial Communication
- Modbus RTU (built-in)
- DeviceNet
- EtherNet/IP
- Modbus TCP/IP
- PROFIBUS-DP
- PROFINET
- Building Automation Networks (BAS)
- BACnet
- Lonworks
- Metasys (N2)
- Apogee (P1
P1000 Drive Specifications
|
Item
|
Specification
|
|---|---|
| Continuous Load Capacity | Variable Torque (square of percent speed) |
| Intermittent Load Capacity | 120% for 60 seconds |
| Output Frequency | 0.01 to 400 Hz |
| Enclosure Solutions | Open Type/IP00 NEMA Type 1(kit required for some models) IFlange Type (front = Open/IP00, back = NEMA Type 12) |
| Power Solutions | 6-pulse (standard) 240V: 3/4 to 175 HP 480V: 1 to 1000 HP 600V: 1 to 250 HP12-pulse (low harmonic) 480V: 40 to 1000 HP |
| Ambient Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Global Certification | UL, CSA, CE, RoHS, C-Tick |
| Standard I/O | (8) multi-function digital inputs (24Vdc) (3) multi-function analog inputs (0-10 VDC, 4-20 mA) (1) multi-function pulse input (1) fault relay output (form C) (1) multi-function relay (form C) (2) multi-function relay outputs (form A) (2) multi-function analog outputs (0 +/- 10 VDC, 4-20mA) Sensor feedback power supply (+24VVdc at 150mA supply) 120V converter for 8 standard digital inputs (option) |
P1000 Drive Models & Ratings
P1000 Drive 200-240V, 3-Phase, Standard
|
Drive Model Number
|
Rated Output Current (Amps)
|
Nominal HP 3
|
Standard Enclosure 1, 2
|
|---|---|---|---|
|
CIMR-PU2A0004FAA
|
3.5
|
3/4
|
NEMA 1
|
|
CIMR-PU2A0006FAA
|
6
|
1
|
|
|
CIMR-PU2A0008FAA
|
8
|
2
|
|
|
CIMR-PU2A0010FAA
|
9.6
|
2
|
NEMA 1
|
|
CIMR-PU2A0012FAA
|
12
|
3
|
|
|
CIMR-PU2A0018FAA
|
17.5
|
5
|
|
|
CIMR-PU2A0021FAA
|
21
|
7.5
|
NEMA 1
|
|
CIMR-PU2A0030FAA
|
30
|
10
|
|
|
CIMR-PU2A0040FAA
|
40
|
15
|
|
|
CIMR-PU2A0056FAA
|
56
|
20
|
NEMA 1
|
|
CIMR-PU2A0069FAA
|
69
|
25
|
|
|
CIMR-PU2A0081FAA
|
81
|
30
|
|
|
CIMR-PU2A0110FAA
|
110
|
40
|
NEMA 1
|
|
CIMR-PU2A0138FAA
|
138
|
50
|
|
|
CIMR-PU2A0169FAA
|
169
|
60
|
NEMA 1
|
|
CIMR-PU2A0211FAA
|
211
|
75
|
|
|
CIMR-PU2A0250AAA
|
250
|
100
|
Protected Chassis
|
|
CIMR-PU2A0312AAA
|
312
|
125
|
|
|
CIMR-PU2A0360AAA
|
360
|
150
|
Protected Chassis
|
|
CIMR-PU2A0415AAA
|
415
|
175
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU2A081FAA and smaller).
- Only models ending in FAA (CIMR-PU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
P1000 Drive 200-240V, 1-Phase, Standard
|
Drive Model Number 1, 2
|
Single Phase Input – Sizing Method AA
(Continuous Full Power) |
Single Phase Input – Sizing Method BB
(86% max power of connected motor size) |
||||
|---|---|---|---|---|---|---|
|
Without Additional Reactor
|
With Additional Reactor
|
Motor Amps | Motor Size (HP) | |||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | |||
|
CIMR-PU2A0004FAA
|
1.7
|
1/3
|
2.4
|
1/2
|
3.5
|
1/2
|
|
CIMR-PU2A0006FAA
|
3.5
|
3/4
|
3.5 |
3/4
|
4.6
|
1
|
|
CIMR-PU2A0008FAA
|
4.6
|
1
|
4.6
|
1
|
6.6
|
1
|
|
CIMR-PU2A0010FAA
|
4.6 |
1
|
4.6
|
1
|
6.6
|
1.5
|
|
CIMR-PU2A0012FAA
|
6.6
|
1.5
|
7.5
|
2
|
7.5
|
2
|
|
CIMR-PU2A0018FAA
|
7.5 |
2
|
10.6
|
3
|
10.6
|
3
|
|
CIMR-PU2A0021FAA
|
7.5
|
2
|
10.6
|
3
|
10.6
|
3
|
|
CIMR-PU2A0030FAA
|
10.6
|
3
|
10.6
|
3
|
17
|
5
|
|
CIMR-PU2A0040FAA
|
10.6
|
3
|
17
|
5
|
17
|
5
|
|
CIMR-PU2A0056FAA
|
17
|
5
|
24
|
7.5
|
24
|
7.5
|
|
CIMR-PU2A0069FAA
|
24
|
7.5
|
31
|
10
|
31
|
10
|
|
CIMR-PU2A0081FAA
|
31
|
10
|
46
|
15
|
46
|
15
|
|
CIMR-PU2A0110FAA
|
31
|
10
|
31
|
10
|
46
|
15
|
|
CIMR-PU2A0138FAA
|
46
|
15
|
46
|
15
|
59
|
20
|
|
CIMR-PU2A0169FAA
|
59
|
20
|
59
|
20
|
75
|
25
|
|
CIMR-PU2A0211FAA
|
75
|
25
|
75
|
25
|
88
|
30
|
|
CIMR-PU2A0250AAA
|
88
|
30
|
88
|
30
|
114
|
40
|
|
CIMR-PU2A0312AAA
|
114
|
40
|
114
|
40
|
143
|
50
|
|
CIMR-PU2A0360AAA
|
143
|
50
|
143
|
50
|
169
|
60
|
|
CIMR-PU2A0415AAA
|
169
|
60
|
169
|
60
|
211
|
75
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU2A0081FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-PU2A0211FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the Sizing Method above to determine proper drive size. Use selected model number with “UAA” suffix instead of “FAA” or “AAA” suffix.
(A) Use single-phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, refer to “Reactors for Single Phase Input” under P1000 Power Options on this site. Caution: Adding more impedance than specified will degrade performance.
(B) Use single-phase input sizing method B for applications requiring a maximum of 86% motor power.
P1000 Drive 200-240V, 3-Phase, Flange
|
Drive Model Number 1
|
Rated Output Current (Amps)
|
Nominal HP 2
|
Enclosure 1
|
|---|---|---|---|
|
CIMR-PU2A0004UAA
|
3.5
|
3/4
|
Flange
|
|
CIMR-PU2A0006UAA
|
6
|
1
|
|
|
CIMR-PU2A0008UAA
|
8
|
2
|
|
|
CIMR-PU2A0010UAA
|
9.6
|
3
|
Flange
|
|
CIMR-PU2A0012UAA
|
12
|
3
|
|
|
CIMR-PU2A0018UAA
|
17.5
|
5
|
|
|
CIMR-PU2A0021UAA
|
21
|
7.5
|
Flange
|
|
CIMR-PU2A0030UAA
|
30
|
10
|
|
|
CIMR-PU2A0040UAA
|
40
|
15
|
|
|
CIMR-PU2A0056UAA
|
56
|
20
|
Flange
|
|
CIMR-PU2A0069UAA
|
69
|
25
|
|
|
CIMR-PU2A0081UAA
|
81
|
30
|
|
|
CIMR-PU2A0110UAA
|
110
|
40
|
Flange
|
|
CIMR-PU2A0138UAA
|
138
|
50
|
|
|
CIMR-PU2A0169UAA
|
169
|
60
|
|
|
CIMR-PU2A0211UAA
|
211
|
75
|
Flange
|
|
CIMR-PU2A0250UAA
|
250
|
100
|
|
|
CIMR-PU2A0312UAA
|
312
|
125
|
|
|
CIMR-PU2A0360UAA
|
360
|
150
|
Flange
|
|
CIMR-PU2A0415UAA
|
415
|
175
|
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
P1000 Drive 380-480V, 3-Phase, Standard
|
Drive Model Number
|
Rated Output Current (Amps)
|
Nominal HP 3
|
Standard Enclosure 1, 2
|
|---|---|---|---|
|
CIMR-PU4A0002FAA
|
2.1
|
1
|
NEMA 1
|
|
CIMR-PU4A0004FAA
|
4.1
|
2
|
|
|
CIMR-PU4A0005FAA
|
5.4
|
3
|
|
|
CIMR-PU4A0007FAA
|
6.9
|
4
|
NEMA 1
|
|
CIMR-PU4A0009FAA
|
8.8
|
5
|
|
|
CIMR-PU4A0011FAA
|
11.1
|
7.5
|
|
|
CIMR-PU4A0018FAA
|
17.5
|
10
|
NEMA 1
|
|
CIMR-PU4A0023FAA
|
23
|
15
|
|
|
CIMR-PU4A0031FAA
|
31
|
20
|
|
|
CIMR-PU4A0038FAA
|
38
|
25
|
NEMA 1
|
|
CIMR-PU4A0044FAA
|
44
|
30
|
|
|
CIMR-PU4A0058FAA
|
58
|
40
|
|
|
CIMR-PU4A0072FAA
|
72
|
50
|
NEMA 1
|
|
CIMR-PU4A0088FAA
|
88
|
60
|
|
|
CIMR-PU4A0103FAA
|
103
|
75
|
|
|
CIMR-PU4A0139FAA
|
139
|
100
|
NEMA 1
|
|
CIMR-PU4A0165FAA
|
165
|
125
|
|
|
CIMR-PU4A0208AAA
|
208
|
150
|
Protected Chassis
|
|
CIMR-PU4A0250AAA
|
250
|
200
|
|
|
CIMR-PU4A0296AAA
|
296
|
250
|
|
|
CIMR-PU4A0362AAA
|
362
|
300
|
Protected Chassis
|
|
CIMR-PU4A0414AAA
|
414
|
350
|
|
|
CIMR-PU4A0515AAA
|
515
|
400
|
Protected Chassis
|
|
CIMR-PU4A0675AAA
|
675
|
500
|
|
|
CIMR-PU4A0930AAA
|
930
|
700-800
|
Protected Chassis
|
|
CIMR-PU4A1200AAA
|
1200
|
900-1000
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU4A044FAA and smaller).
- Only models ending in FAA (CIMR-PU4A0165FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
- Models CIMR-PU4A0930AAA and CIMR-PU4A1200AAA must be used with semiconductor input fuses and must be fed by a power source that has ground fault protection. A supplementary ground fault protection device can be added between the drive and the power source to address this requirement.
P1000 Drive 380-480V, 1-Phase, Standard
|
Drive Model Number 1, 2
|
Single Phase Input – Sizing Method AA
(Continuous Full Power) |
Single Phase Input – Sizing Method BB
(86% max power of connected motor size) |
||||
|---|---|---|---|---|---|---|
|
Without Additional Reactor
|
With Additional Reactor
|
Motor Amps | Motor Size (HP) | |||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | |||
|
CIMR-PU4A0002FAA
|
0.8
|
1/3
|
1.1
|
1/2
|
1.6
|
3/4
|
|
CIMR-PU4A0004FAA
|
1.6
|
3/4
|
2.1 |
1
|
2.1
|
1
|
|
CIMR-PU4A0005FAA
|
2.1
|
1
|
3
|
1.5
|
3.4
|
2
|
|
CIMR-PU4A0007FAA
|
3.0
|
1.5
|
3.4
|
2
|
3.4
|
2
|
|
CIMR-PU4A0009FAA
|
3.4
|
2
|
4.8
|
3
|
4.8
|
3
|
|
CIMR-PU4A0011FAA
|
3.4
|
2
|
4.8
|
3
|
4.8
|
3
|
|
CIMR-PU4A0018FAA
|
4.8
|
3
|
4.8
|
3
|
7.6
|
5
|
|
CIMR-PU4A0023FAA
|
4.8
|
3
|
7.6
|
5
|
7.6
|
5
|
|
CIMR-PU4A0031FAA
|
11
|
7.5
|
11
|
7.5
|
14
|
10
|
|
CIMR-PU4A0038FAA
|
11
|
7.5
|
14
|
10
|
14
|
10
|
|
CIMR-PU4A0044FAA
|
14
|
10
|
14
|
10
|
21
|
15
|
|
CIMR-PU4A0058FAA
|
21
|
15
|
21
|
15
|
27
|
20
|
|
CIMR-PU4A0072FAA
|
27
|
20
|
27
|
20
|
34
|
25
|
|
CIMR-PU4A0088FAA
|
27
|
20
|
27
|
20
|
34
|
25
|
|
CIMR-PU4A0103FAA
|
27
|
20
|
27
|
20
|
34
|
25
|
|
CIMR-PU4A0139FAA
|
52
|
40
|
52
|
40
|
65
|
50
|
|
CIMR-PU4A0165FAA
|
52
|
40
|
52
|
40
|
65
|
50
|
|
CIMR-PU4A0208AAA
|
65
|
50
|
65
|
50
|
77
|
60
|
|
CIMR-PU4A0250AAA
|
77
|
60
|
77
|
60
|
96
|
75
|
|
CIMR-PU4A0296AAA
|
96
|
75
|
96
|
75
|
124
|
100
|
|
CIMR-PU4A0362AAA
|
124
|
100
|
124
|
100
|
156
|
125
|
|
CIMR-PU4A0414AAA
|
156
|
125
|
156
|
125
|
180
|
150
|
|
CIMR-PU4A0515AAA
|
156
|
125
|
156
|
125
|
180
|
150
|
|
CIMR-PU4A0675AAA
|
180
|
150
|
180
|
150
|
240
|
200
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU4A0044FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-PU4A0165FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the Sizing Method above to determine proper drive size. Use selected model number with “UAA” suffix instead of “FAA” or “AAA” suffix.
(A) Use single-phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, refer to “Reactors for Single Phase Input” under P1000 Power Options on this site. Caution: Adding more impedance than specified will degrade performance.
(B) Use single-phase input sizing method B for applications requiring a maximum of 86% motor power.
P1000 Drive 380-480V, 3-Phase, Flange
|
Drive Model Number1
|
Rated Output Current (Amps) |
Nominal HP2
|
Enclosure1
|
|---|---|---|---|
|
CIMR-PU4A0002UAA
|
2.1
|
1
|
Flange
|
|
CIMR-PU4A0004UAA
|
4.1
|
2
|
|
|
CIMR-PU4A0005UAA
|
5.4
|
3
|
|
|
CIMR-PU4A0007UAA
|
6.9
|
4
|
Flange
|
|
CIMR-PU4A0009UAA
|
8.8
|
5
|
|
|
CIMR-PU4A0011UAA
|
11.1
|
7.5
|
|
|
CIMR-PU4A0018UAA
|
17.5
|
10
|
Flange
|
|
CIMR-PU4A0023UAA
|
23
|
15
|
|
|
CIMR-PU4A0031UAA
|
31
|
20
|
|
|
CIMR-PU4A0038UAA
|
38
|
25
|
Flange
|
|
CIMR-PU4A0044UAA
|
44
|
30
|
|
|
CIMR-PU4A0058UAA
|
58
|
40
|
|
|
CIMR-PU4A0072UAA
|
72
|
50
|
Flange
|
|
CIMR-PU4A0088UAA
|
88
|
60
|
|
|
CIMR-PU4A0103UAA
|
103
|
75
|
|
|
CIMR-PU4A0139UAA
|
139
|
100
|
Flange
|
|
CIMR-PU4A0165UAA
|
165
|
125
|
|
|
CIMR-PU4A0208UAA
|
208
|
150
|
Flange
|
|
CIMR-PU4A0250UAA
|
250
|
200
|
|
|
CIMR-PU4A0296UAA
|
296
|
250
|
|
|
CIMR-PU4A0362UAA
|
362
|
300
|
Flange
|
|
CIMR-PU4A0414UAA
|
414
|
350
|
|
|
CIMR-PU4A0515UAA
|
515
|
400
|
Flange
|
|
CIMR-PU4A0675UAA
|
675
|
500
|
|
|
CIMR-PU4A0930UAA3
|
930
|
700-800
|
Flange
|
|
CIMR-PU4A1200UAA3
|
1200
|
900-1000
|
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
- Models CIMR-PU4A0930UAA and CIMR-PU4A1200UAA must be used with semiconductor input fuses and must be fed by a power source that has ground fault protection. A supplementary ground fault protection device can be added between the drive and the power source to address this requirement.
P1000 Drive 380-480V, 3-Phase, 12-Pulse Flange
|
Drive Model Number 12-Pulse1
|
Rated Output Current (Amps)
|
Nominal HP2
|
Enclosure1
|
|---|---|---|---|
|
CIMR-PU4T0058UAA
|
58
|
40
|
Flange
|
|
CIMR-PU4T0072UAA
|
72
|
50
|
|
|
CIMR-PU4T0088UAA
|
88
|
60
|
Flange
|
|
CIMR-PU4T0103UAA
|
103
|
75
|
|
|
CIMR-PU4T0139UAA
|
139
|
100
|
Flange
|
|
CIMR-PU4T0165UAA
|
165
|
125
|
|
|
CIMR-PU4T0208UAA
|
208
|
150
|
Flange
|
|
CIMR-PU4T0250UAA
|
250
|
200
|
|
|
CIMR-PU4T0296UAA
|
296
|
250
|
|
|
CIMR-PU4T0362UAA
|
362
|
300
|
Flange
|
|
CIMR-PU4T0414UAA
|
414
|
350
|
|
|
CIMR-PU4T0515UAA
|
515
|
400
|
Flange
|
|
CIMR-PU4T0675UAA
|
675
|
500
|
|
|
See note 3
|
930
|
700-800
|
Flange
|
|
See note 3
|
1200
|
900-1000
|
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external. Flange parts can be removed if convential mounting is desired.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors.
- Models CIMR-PU4A0930xxx and CIMR-PU4A1200xxx are user configurable for either 6-Pulse (3-Phase) or 12-Pulse (6-Phase) input. See Standard 480V for model numbers.
P1000 Drive 500-600V, 3-Phase, Standard
|
Rated Output Current (Amps)
|
Nominal HP 3
|
Standard Enclosure 1, 2
|
|
|---|---|---|---|
|
CIMR-PU5A0003FAA
|
2.7
|
1 & 2
|
NEMA 1
|
|
CIMR-PU5A0004FAA
|
3.9
|
3
|
|
|
CIMR-PU5A0006FAA
|
6.1
|
5
|
|
|
CIMR-PU5A0009FAA
|
9
|
7.5
|
NEMA 1
|
|
CIMR-PU5A0011FAA
|
11
|
10
|
|
|
CIMR-PU5A0017FAA
|
17.5
|
15
|
|
|
CIMR-PU5A0022FAA
|
22
|
20
|
NEMA 1
|
|
CIMR-PU5A0027FAA
|
27
|
25
|
|
|
CIMR-PU5A0032FAA
|
32
|
30
|
|
|
CIMR-PU5A0041FAA
|
41
|
40
|
NEMA 1
|
|
CIMR-PU5A0052FAA
|
52
|
50
|
|
|
CIMR-PU5A0062FAA
|
62
|
60
|
|
|
CIMR-PU5A0077FAA
|
77
|
75
|
NEMA 1
|
|
CIMR-PU5A0099FAA
|
99
|
100
|
|
|
CIMR-PU5A0125AAA
|
125
|
125
|
Protected Chassis
|
|
CIMR-PU5A0145AAA
|
145
|
150
|
|
|
CIMR-PU5A0192AAA
|
192
|
200
|
Protected Chassis
|
|
CIMR-PU5A0242AAA
|
242
|
250
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU5A032FAA and smaller).
- Only models ending in FAA (CIMR-PU5A0099FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors. Also, listed power ratings assumes three-phase input. For single-phase input applications, consult Manual Supplement TOEPYEASUP03 for proper sizing.
P1000 Drive 500-600V, 1-Phase, Standard
|
Drive Model Number 1, 2
|
Single Phase Input – Sizing Method AA
(Continuous Full Power) |
Single Phase Input – Sizing Method BB
(86% max power of connected motor size) |
||||
|---|---|---|---|---|---|---|
|
Without Additional Reactor
|
With Additional Reactor
|
Motor Amps | Motor Size (HP) | |||
| Motor Amps | Motor Size (HP) | Motor Amps | Motor Size (HP) | |||
|
CIMR-PU5A0003FAA
|
1.7
|
1
|
2.4
|
1.5
|
1.7
|
1
|
|
CIMR-PU5A0004FAA
|
2.4
|
1.5
|
2.7 |
2
|
2.7
|
2
|
|
CIMR-PU5A0006FAA
|
2.7
|
2
|
3.9
|
3
|
3.9
|
3
|
|
CIMR-PU5A0009FAA
|
3.9
|
3
|
6.1
|
5
|
6.1
|
5
|
|
CIMR-PU5A0011FAA
|
2.7
|
2
|
3.9
|
3
|
3.9
|
3
|
|
CIMR-PU5A0017FAA
|
6.1
|
5
|
6.1
|
5
|
9
|
7.5
|
|
CIMR-PU5A0022FAA
|
6.1
|
5
|
9
|
7.5
|
9
|
7.5
|
|
CIMR-PU5A0027FAA
|
9
|
7.5
|
11
|
10
|
11
|
10
|
|
CIMR-PU5A0032FAA
|
9
|
7.5
|
11
|
10
|
11
|
10
|
|
CIMR-PU5A0041FAA
|
17
|
15
|
17
|
15
|
22
|
20
|
|
CIMR-PU5A0052FAA
|
17
|
15
|
17
|
15
|
22
|
20
|
|
CIMR-PU5A0062FAA
|
27
|
25
|
27
|
25
|
32
|
30
|
|
CIMR-PU5A0077FAA
|
32
|
30
|
32
|
30
|
41
|
40
|
|
CIMR-PU5A0099FAA
|
32
|
30
|
32
|
30
|
41
|
40
|
|
CIMR-PU5A0125AAA
|
52
|
50
|
52
|
50
|
62
|
60
|
|
CIMR-PU5A0145AAA
|
52
|
50
|
52
|
50
|
62
|
60
|
|
CIMR-PU5A0192AAA
|
77
|
75
|
77
|
75
|
99
|
100
|
|
CIMR-PU5A0242AAA
|
77
|
75
|
77
|
75
|
99
|
100
|
- Standard Enclosure can be conventionally mounted, or heatsink external (kit required for models CIMR-PU5A0032FAA and smaller). Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external.
- Only models ending in FAA (CIMR-PU5A0099FAA and smaller) come standard with NEMA 1 End Cap Kits. Separately sold kits are available for larger models.
- For Flange Drives, use the Sizing Method above to determine proper drive size. Use selected model number with “UAA” suffix instead of “FAA” or “AAA” suffix.(A) Use single-phase input sizing method A for applications requiring more than 86% motor power. When sizing with additional reactor, refer to “Reactors for Single Phase Input” under P1000 Power Options on this site. Caution: Adding more impedance than specified will degrade performance.
(B) Use single-phase input sizing method B for applications requiring a maximum of 86% motor power.
P1000 Drive 500-600V, 3-Phase, Flange
|
Drive Model Number1
|
Rated Output Current (Amps)
|
Nominal HP2
|
Enclosure1
|
|---|---|---|---|
|
CIMR-PU5A0003UAA
|
2.7
|
1 & 2
|
Flange
|
|
CIMR-PU5A0004UAA
|
3.9
|
3
|
|
|
CIMR-PU5A0006UAA
|
6.1
|
5
|
|
|
CIMR-PU5A0009UAA
|
9
|
7.5
|
Flange
|
|
CIMR-PU5A0011UAA
|
11
|
10
|
|
|
CIMR-PU5A0017UAA
|
17.5
|
15
|
|
|
CIMR-PU5A0022UAA
|
22
|
20
|
Flange
|
|
CIMR-PU5A0027UAA
|
27
|
25
|
|
|
CIMR-PU5A0032UAA
|
32
|
30
|
|
|
CIMR-PU5A0041UAA
|
41
|
40
|
Flange
|
|
CIMR-PU5A0052UAA
|
52
|
50
|
|
|
CIMR-PU5A0062UAA
|
62
|
60
|
|
|
CIMR-PU5A0077UAA
|
77
|
75
|
Flange
|
|
CIMR-PU5A0099UAA
|
99
|
100
|
|
|
CIMR-PU5A0125UAA
|
125
|
125
|
Flange
|
|
CIMR-PU5A0145UAA
|
145
|
150
|
|
|
CIMR-PU5A0192UAA
|
192
|
200
|
Flange
|
|
CIMR-PU5A0242UAA
|
242
|
250
|
- Flange Enclosure includes special factory-installed gasketing and flange to provide NEMA 12 backside integrity when mounting heatsink external. Flange parts can be removed if conventional mounting is desired.
- Horsepower rating is based on standard NEMA B 4-pole motor design as represented in NEC table 430.150 Full-Load Current, Three-Phase Alternating Current Motors.
- Models CIMR-PU4A0930xxx and CIMR-PU4A1200xxx are user configurable for either 6-Pulse (3-Phase) or 12-Pulse (6-Phase) input. See Standard 480V price page on page 4 for model numbers and prices.
Biến tần yaskawa P1000 Drive
Thông tin thanh toán
Quý khách hàng có thể thanh toán trực tiếp tại hệ thống phân phối hoặc thanh toán qua hệ thống ngân hàng.
1. THANH TOÁN TRỰC TIẾP TẠI CỬA HÀNG
Quý khách có thể thanh toán trực tiếp tại cửa hàng của chúng tôi
2. THANH TOÁN TRỰC TIẾP KHI NHẬN HÀNG
Quý khách có thể thanh toán trực tiếp tại nơi nhận hàng (nhà, văn phòng làm việc,…) mà quý khách yêu cầu khi quý khách nhận được hàng.
3. CHUYỂN KHOẢN QUA HỆ THỐNG TÀI KHOẢN NGÂN HÀNG
Thông tin tài khoản Ngân hàng:
Vui lòng liên hệ số điện thoại hotline để lấy thông tin.
Xin lưu ý:
Sau khi gửi tiền xin quý khách vui lòng giữ lại tất cả các thông tin như biên lai gửi tiền, biên lai chuyển khoản, uỷ nhiêm chi để làm căn cứ trong các trường hợp hàng hoá thất lạc chưa đến tay người mua hàng …
Trong trường hợp phát sinh chậm trễ trong việc gửi hàng do điều kiện đặc biệt thì chúng tôi sẽ thông báo kịp thời bằng điện thoại cho quý khách.
Chúng tôi với nhiều năm kinh nghiệm trong lĩnh vực bán hàng qua mạng, cùng hàng nghìn sản phẩm được gửi đi trên khắp cả nước.
Quý khách mua hàng từ xa hoàn toàn yên tâm với hình thức này..!
Xin chân thành cảm ơn quý khách hàng gần xa đã tin dùng sản phẩm của chúng tôi trong suốt thời gian qua.
