0.05-0.75kW, medium inertia
The SGMJV small capacity brushless servomotor can be used in a variety of applications.

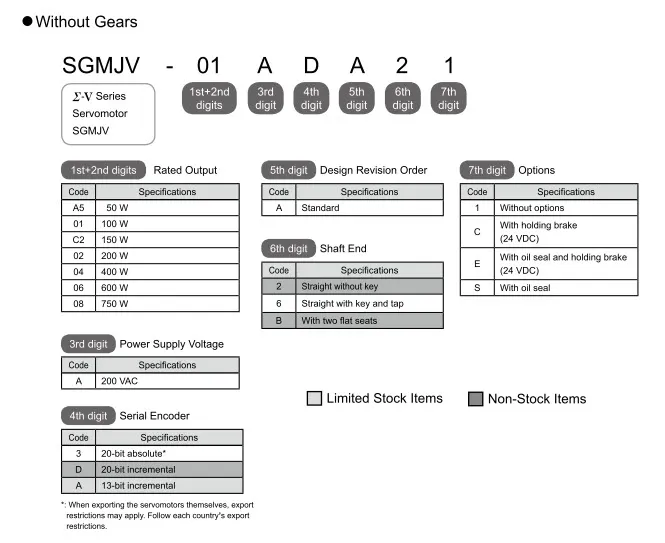

SGMJV Models & Ratings
|200 V Model||Rated Output1||Rated Torque1, 2||Instantaneous Peak Torque1||Rated Current1||Instantaneous Max. Current1||Rated Angular Acceleration1|
|SGMJV-A5A||50 W||0.159 Nm||0.557 Nm||0.61 Arms||2.1 Arms||38400 rad/s2|
|SGMJV-01A||100 W||0.318 Nm||1.11 Nm||0.84 Arms||2.9 Arms||47800 rad/s2|
|SGMJV-C2A||150 W||0.477 Nm||1.67 Nm||1.6 Arms||5.7 Arms||54100 rad/s2|
|SGMJV-02A||200 W||0.637 Nm||2.23 Nm||1.6 Arms||5.8 Arms||24600 rad/s2|
|SGMJV-04A||400 W||1.27 Nm||4.46 Nm||2.7 Arms||9.3 Arms||28800 rad/s2|
|SGMJV-06A||600 W||1.91 Nm||6.69 Nm||4.2 Arms||14.9 Arms||28600 rad/s2|
|SGMJV-08A||750 W||2.39 Nm||8.36 Nm||4.7 Arms||16.9 Arms||15200 rad/s2|
- These items and torque-motor speed characteristics quoted in combination with an SGDV SERVOPACK are at an armature winding temperature of 100°C. Other values quoted are at 20°C.
- Rated torques are continuous allowable torque values at 40°C with an aluminum heat sink of the following dimensions attached.
SGMJV-A5A, -01A: 200mmx200mmx6mm
SGMJV-02A, -04A: 250mmx250mmx6mm
