SGMSV

Servo and motion

SGMSV
SGMSV

SGMSV

1 – 7kW, low inertia

The SGMSV medium capacity brushless servomotor can be used in a variety of applications.

SGMSV Features Highlights:

  • Low inertia
  • Mounted high resolution serial encoder: 20-bit
  • Maximum Speed: 5000 rpm
  • Wide Selection: 1 – 7kW
  • Holding Brake and Shaft Seal options available
  • Protective Structure: IP67

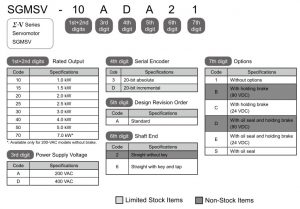

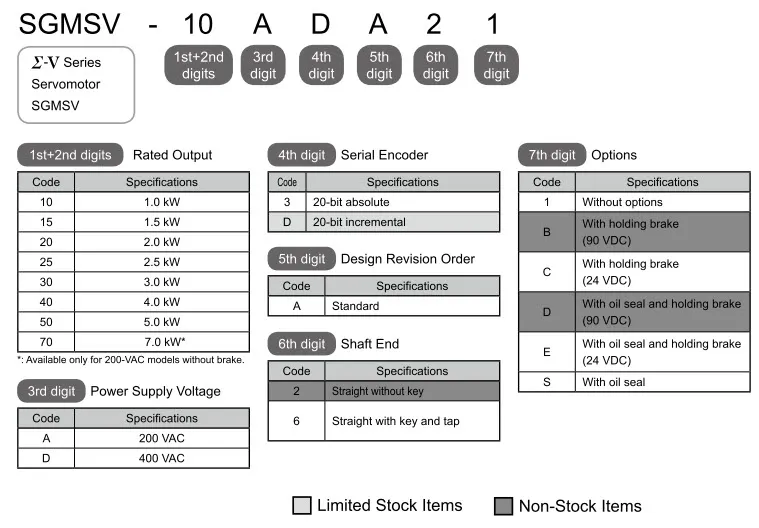

SGMSV Models & Ratings



200 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMSV-10A 1.0 kW 3.18 Nm 9.54 Nm 5.7 Arms 17 Arms 18300 (16000) rad/s2
SGMSV-15A 1.5 kW 4.90 Nm 14.7 Nm 9.3 Arms 28 Arms 24500 (21800) rad/s2
SGMSV-20A 2.0 kW 6.36 Nm 19.1 Nm 12.1 Arms 42 Arms 25700 (23400) rad/s2
SGMSV-25A 2.5 kW 7.96 Nm 23.9 Nm 13.8 Arms 44.5 Arms 25000 (23100) rad/s2
SGMSV-30A 3.0 kW 9.80 Nm 29.4 Nm 17.9 Arms 56 Arms 14000 (10700) rad/s2
SGMSV-40A 4.0 kW 12.6 Nm 37.8 Nm 25.4 Arms 77 Arms 13100 (10700) rad/s2
SGMSV-50A 5.0 kW 15.8 Nm 47.6 Nm 27.6 Arms 84 Arms 12800 (10900) rad/s2
SGMSV-70A 7.0 kW 22.3 Nm 54 Nm 38.3 Arms 105 Arms 18100 rad/s2
*These items and torque-motor speed characteristics quoted in combination with a SERVOPACK are at an armature winding temperature of 20°C.

    1. Notes:
  1. The values in parentheses are for servomotors with holding brakes.
  2. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMSV-10A/-15A/-20A/-25A: 300mm x 300mm x 12mm (aluminum)
    SGMSV-30A/-40A/-50A/-70A: 400mm x 400mm x 20mm (aluminum)



400 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMSV-10D 1.0 kW 3.18 Nm 9.54 Nm 2.8 Arms 8.5 Arms 18300 (16000) rad/s2
SGMSV-15D 1.5 kW 4.90 Nm 14.7 Nm 4.7 Arms 14 Arms 24500 (21800) rad/s2
SGMSV-20D 2.0 kW 6.36 Nm 19.1 Nm 6.1 Arms 20 Arms 25700 (23400) rad/s2
SGMSV-25D 2.5 kW 7.96 Nm 23.9 Nm 7.4 Arms 25 Arms 25000 (23100) rad/s2
SGMSV-30D 3.0 kW 9.80 Nm 29.4 Nm 8.9 Arms 28 Arms 14000 (10700) rad/s2
SGMSV-40D 4.0 kW 12.6 Nm 37.8 Nm 12.5 Arms 38 Arms 13100 (10700) rad/s2
SGMSV-50D 5.0 kW 15.8 Nm 47.6 Nm 13.8 Arms 42 Arms 12800 (10900) rad/s2
*These items and torque-motor speed characteristics quoted in combination with an SERVOPACK are at an armature winding temperature of 20°C.

    1. Notes:
    1. The values in parentheses are for servomotors with holding brakes.
  1. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMSV-10D/-15D/-20D/-25D: 300mm x 300mm x 12mm (aluminum)
    SGMSV-30D/-40D/-50D/-70A: 400mm x 400mm x 20mm (aluminum)
