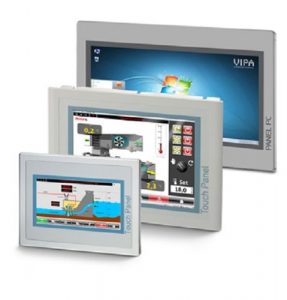

Panel PC
Panel PC
With the Panel PC series, you are best equipped for all control and monitoring tasks. The combination of industrial PC with the most modern performance features and a Touch Panel with ideal display possibilities concentrates high performance in the smallest space.
Panel PC Features
Quality
- Robust and durable – High-quality metal housing with IP65 protection rating (front)
Functionality
- The Panel PC comes with Movicon 11 and Windows Embedded Compact 7
Panel PC in detail
- Numerous interfaces for every application need
- Fanless construction
- High resolution displays
Open for teleservice
- By means of the VNC-Client software you can also have access to your Panel PC via teleservice

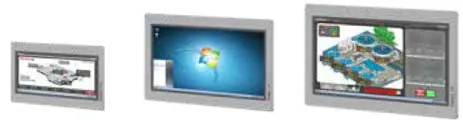

Panel PC Specifications
67K-RRJ0-EB
|
67P-RRJ0-EB
|
67S-RRJ0-EB
|
|
---|---|---|---|
Display Size (Zoll) | 10.1 | 15.6 | 21.5 |
Resolution (Pixel) | 1280×800 | 1366×768 | 1920×1080 |
Touch Screen | Capacitive | ||
Processor | Intel Celeron J1900 4 x 2.0 GHz | ||
Interfaces | 2x Ethernet 2x RS232/422/485 (SUB-D) 2x USB 2.0 1x USB 3.0 1x VGA 1x Audio Out |
||
Work Memory (MB) | 2,048-4,096 | ||
User Memory (MB) | 2,048-16,384 | ||
Card Slot | CFast | ||
Casing | Aluminum | ||
Protection | front: IP65 | rear: IP20 | ||
Operating System | Windows Embedded Compact 7 | ||
Runtime | – Movicon 11 |
Order no. | Name/Description | |
---|---|---|
67K-RRJ0-EB | Panel PC PPC010 CE
Display: 10.1”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
|
67P-RRJ0-EB | Panel PC PPC015 CE
Display: 15.6”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
|
67S-RRJ0-EB | Panel PC PPC021 CE
Display: 21.5”
Processor: Intel Celeron J1900 quad core @2 GHz Work memory: 2 GB Operating system and user memory: 2 GB Memory card plug-in place: CFast Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), Audio out Incl. operating system Windows Embedded Standard 7 and Runtime Movicon CE Standard Visualization system Movicon 11.5 Runtime |
Datasheet
|
